PRODUCT OVERVIEW

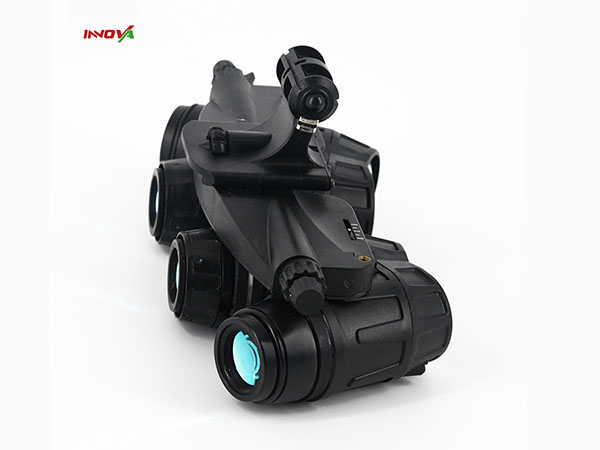

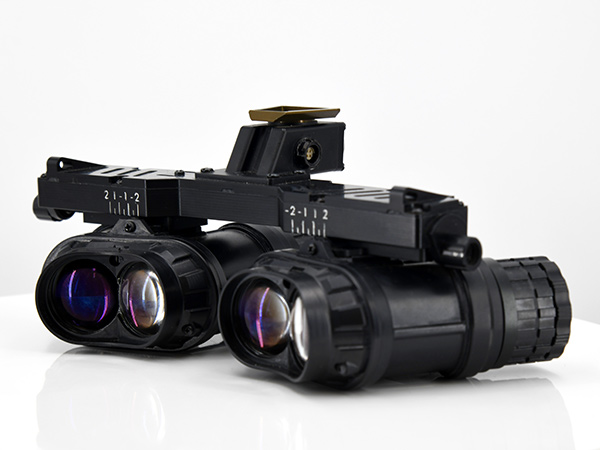

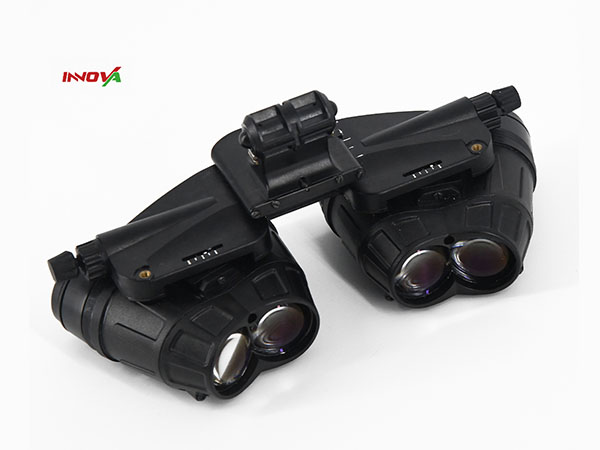

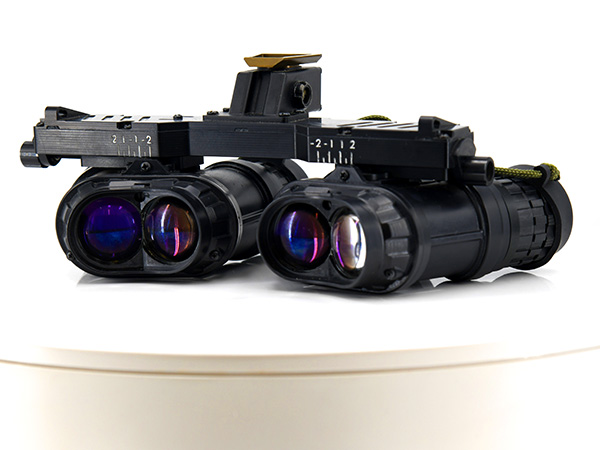

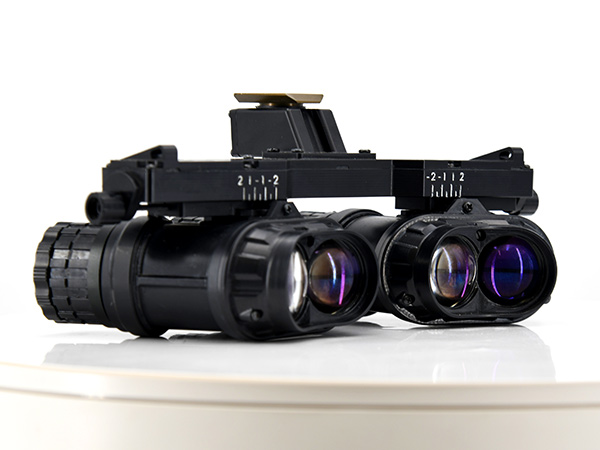

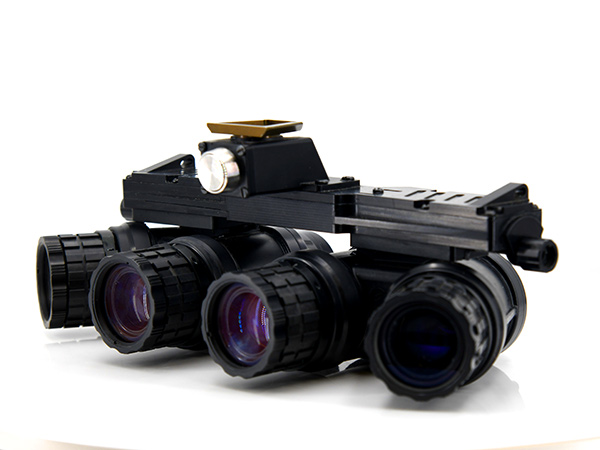

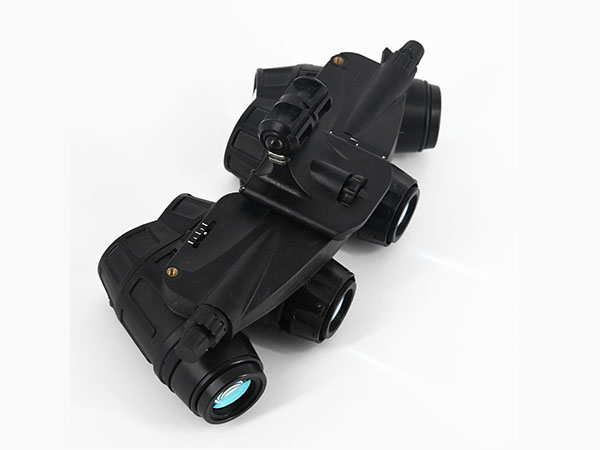

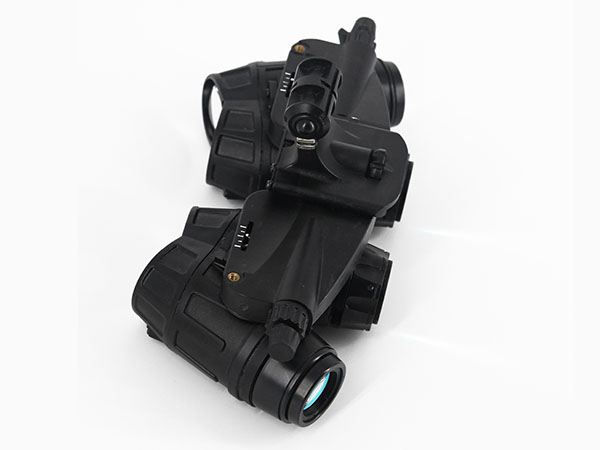

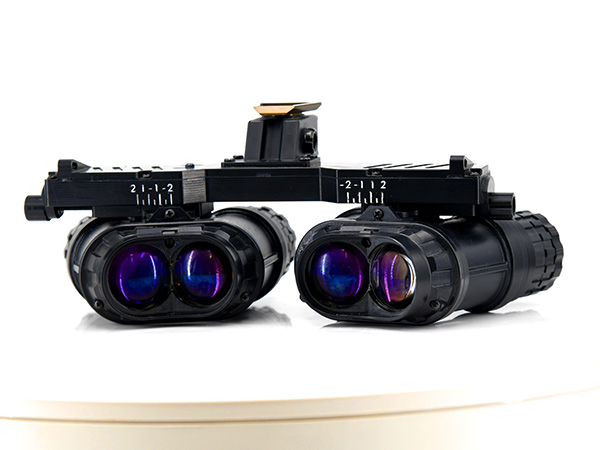

VA-GPNVG is a ground-based panoramic night vision lens that provides the user with more information and enables the user to complete the OODA cycle (Observe, Orient, Decide, and Act) more quickly. MH-GPNVG features four separate image enhancement tubes, four separate objectives aligned in the panoramic direction, and two middle lenses pointing forward like traditional binocular goggles, providing users with an unprecedented 120° field of view, which is definitely a game changer for the SOF community. MH-GPNVG has left and right tubes suspended from the bridge, and the user can choose pupil distance adjustment. The IPD of both systems can be adjusted from the helmet.
MAIN FEATURES
Four independent image intensifier tubes and four objective lens.
The two central tubes overlap with the two outer tubes, and the field of view reaches 120°.
There are two tubes on the left and right, providing the function of interpupillary.
Can be used as an independent handheld viewer.
The IPD of both systems can be adjusted on the helmet stand.
Multipurpose: handheld, helmet support, head support.
Search & Rescue
Security Monitoring
Observe Animals
Hunting
Air Patrol
Night Hike
Cave Exploration
Military Action
Predictive Maintenance
| Structure Mode | Helmet edflip-up |
| Resolution | 57-64 lp/mm |
| Power Supply | 2.6-4.2V |
| Installation | Head mounted (standard American helmet interface) |
| Over Power Consumption | <0.2W |
| Battery Capacity | 800-3200maH |
| Battery Life | 30-80H |
| Maginification | 1x |
| FOV | 98°*50±2 °| Horizontal 98°±2 °| Vertical 50±2 ° |
| Parallelism of Optical Axis | <0.1° |
| Photocathode type | 18 mm S-25 |
| Battery Type | Lithium battery (CR123x1) / CR23x4 external battery pack |
| Gain | Auto |
| Lens System | 22.5 mm, F/1.18 |
| MTF | 120 lp/mm |
| Optical Distortion | 3% Max |
| Relative Illuminance | >75% |
| Coating | Multilayer broadband coating |
| Focus Range | 250 mm to infinity |
| Focus Mode | Manual |
| Eye Relief | 30 mm |
| Pupil Diameter | 8 mm |
| Visibility Range | -1 (+0.5~-2.5) |
| IPD Adjust Type | Arbitrary continuous adjustable |
| IPD Adjust Range | 50-85 mm |
| IPD Lock Type | Manual lock |
| IR | 850 nm 20mW |
| Working Temperature | -40℃ to +55℃ |
| Humidity Range | 5%-95% |
| Protection Level | IP65 |
For more information, please click the button below to download a PDF of the product.
