MAIN FEATURES

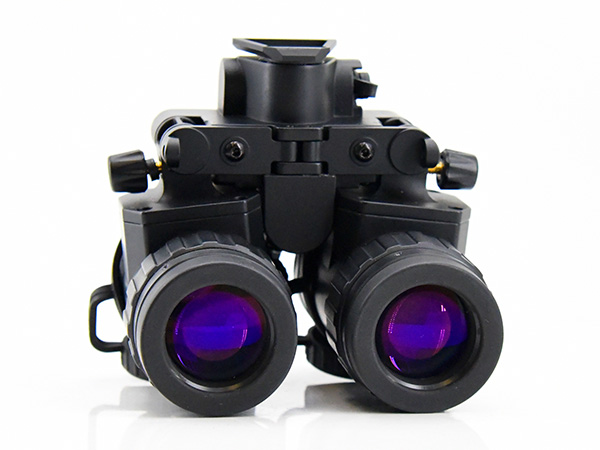

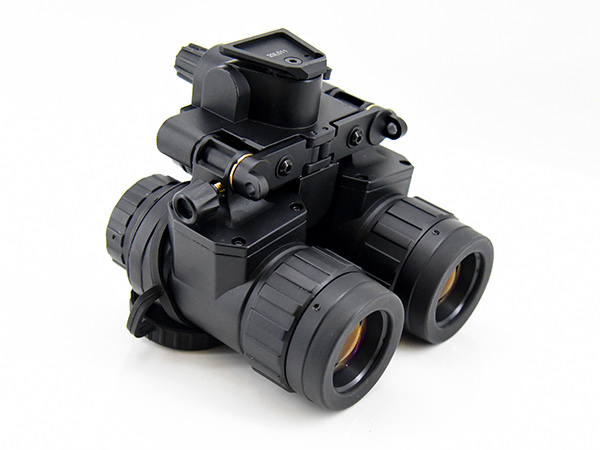

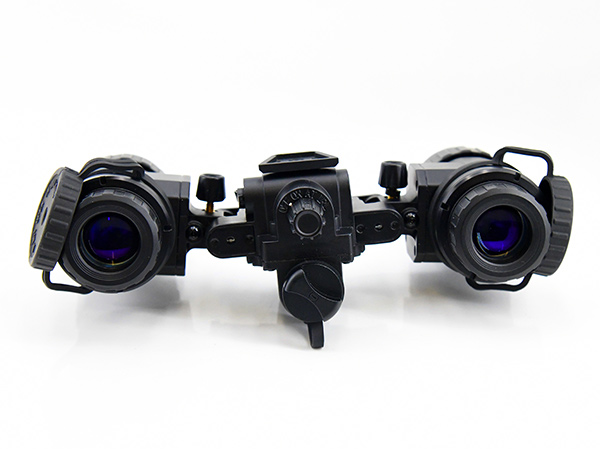

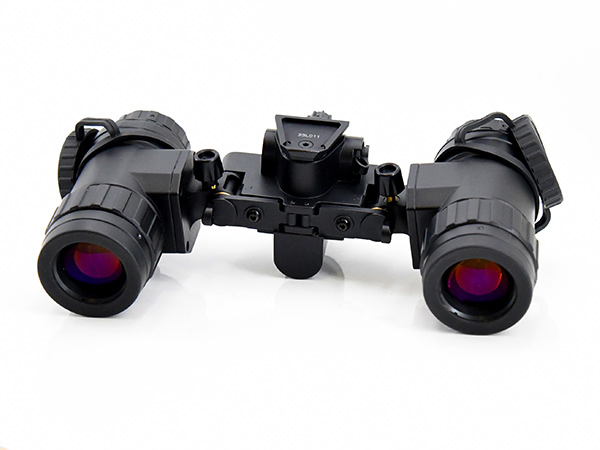

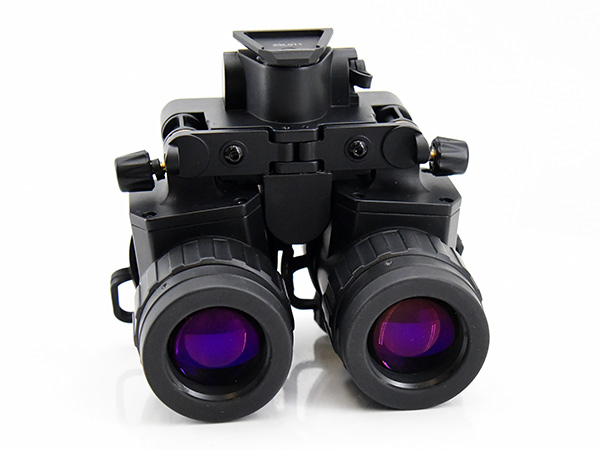

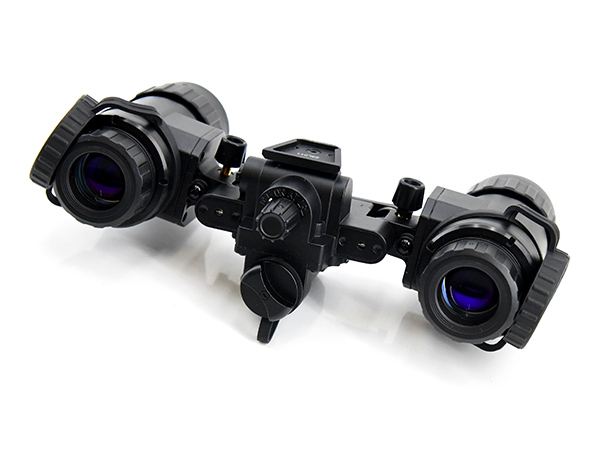

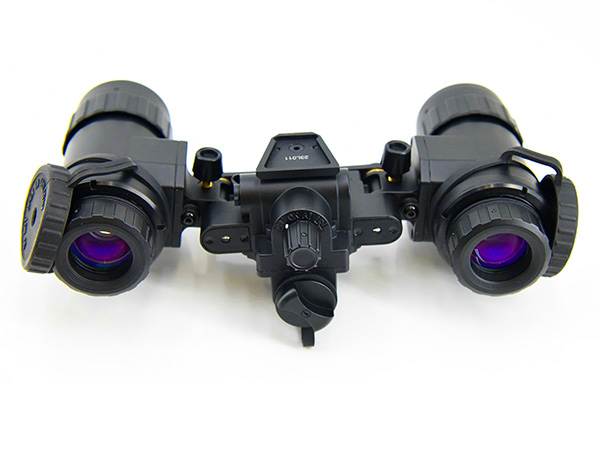

The VA-PVS-31 is one of the most compact and lightweight goggle on the market. This unit has a plethora of features such as independently pivoting pod design that allows the end user to rotate the pods away from the center, It also features a individual cut off which cuts power to the image intensifier by flipping the the unit up on the moun. The IIT are known for retaining peak performance over countless usage hours, combining extremely high performance with nearly impeccable cosmetics. In fact, the allowable blemishes are 50% lower than Pinnacle IIT, providing a flawless Zone 1 picture. They have a minimum of 2,000 FOM with a higher signal-to-noise ratio (SNR) and no inclusions in Zone 1.Plus, these tubes only allow 1 inclusion in Zones 2 and 3, and it can’t be bigger than 0.006 inches, so it’s virtually imperceptible.
PRODUCT OVERVIEW
1. IP65 or IP67 weatherproof;
2. Low battery indication;
3. Bright source protection;
4. Multi-coated optic;
5. Automatic brightness control;
6. Fully adjustable head mount;
7. Embedded spring in battery’s cap;
8. Automatic shut off when flipped up;
9. No power consumption when in standby;
10. Large IPD range.
Security Monitoring
Night Hike
Search & Rescue
Predictive Maintenance
Military Action
Observe Animals
Home Security
Cave Exploration
Assisted Driving
| Structural Mode | Arbitrary turn it over |
| Resolution | >60lp/mm |
| Power Supply | 2.6V - 4.2V |
| Rollover Detection | Automatically detect and power off when turning up |
| Installation | Head mounted(standard American helmet interface) |
| Control mode | ON/IR/AUTO |
| Battery Life | 40-100hrs |
| Photocatode type | 18 mm S-25 |
| Battery Type | Lithium batter (CR123*1) /CR23*4 (external batter box) |
| SNR | >22 |
| Magnification | 1x |
| FOV | 40°±2° (50°±2° ) |
| Parallelism of Optical Axis | <0.1° |
| Lens System | 25 mm, F/1.2 |
| Coating | Multilayer broadband coating |
| Range of Focus | 0.25 m to infinity |
| Focus Mode | manual focus facility |
| Distance of Pupil | 30 mm |
| Eyepiece Aperture | 8 mm |
| Range of Visibility | -4DS~+4DS |
| Eye Spacing Adjustment | Arbitrary continuous adjustable |
| Eye Distance Adjustment Range | 50-72mm |
| Eye Distance Locking Method | Manual locking |
| IR | 850 nm, 20 mW |
| Operating Temperature | -40℃ to +55°C |
| Humidity | 5%-95% |
| Environment Rating | IP65 |
| Dimensions | 112* 105* 86 mm |
| Weight | 490 g (Without battery) |
For more information, please click the button below to download a PDF of the product.
Downloads
Night Vision Binocular PVS-31
