VA-NT(Gen2+|Gen3)

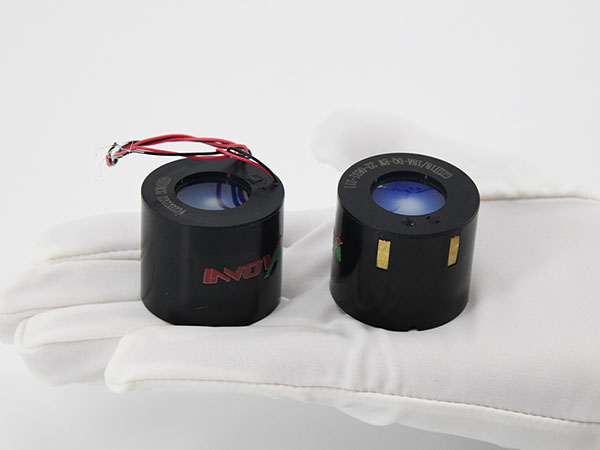

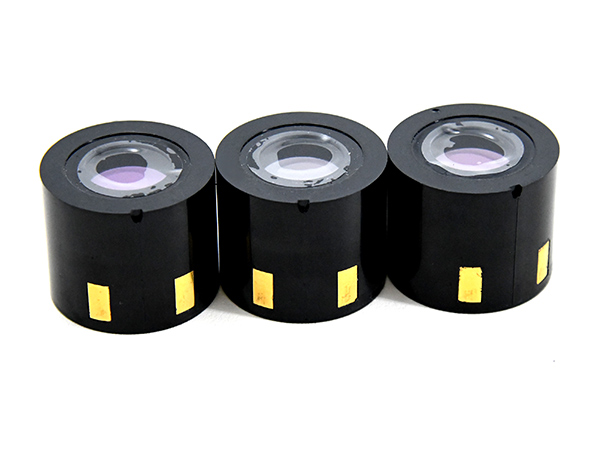

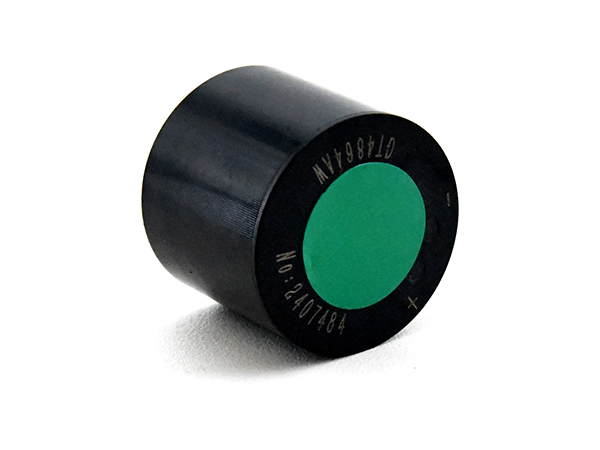

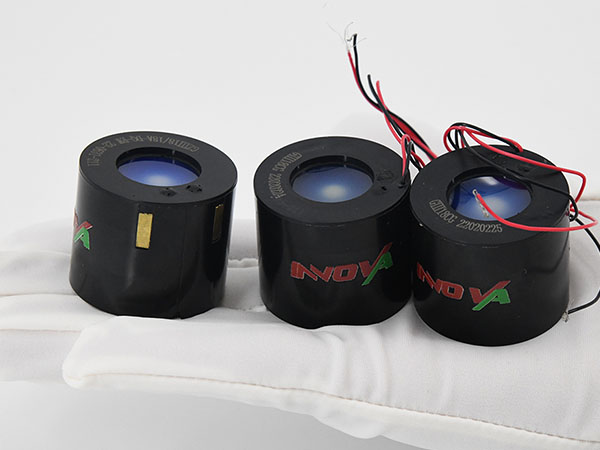

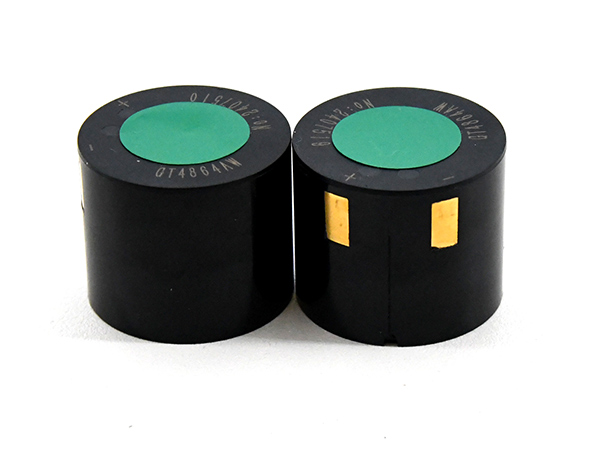

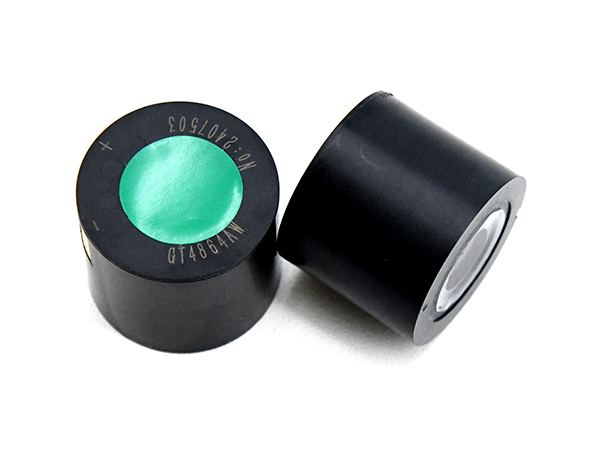

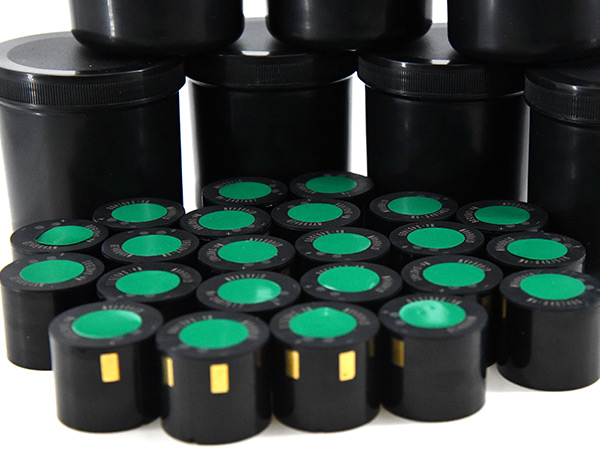

Image Intensifier Tube VA-NT

Main Specifications:

  •  •  Item: Gen2+ Image Intesifier Tube
     •  Resolution: 51-60 lp/mm 60-64
     •  Signal to Noise Ratio: 20/23
     •  Sentivity: 650 μA/lm/700
     •  Quality Factor(FOM): 1000/1600
     •  Operating Voltage: 2.3-3.4V|2.2-3.4V
     •  Working Current: 25 mA
     •  Brightness Gain: 8000-12000 cd/m²/lx
     •  Maximun Output Brightness: 4-8 cd/m²
     •  Equivalent Background Illumination: 0.25 μ lx

Description:

PRODUCT OVERVIEW

Generation 2+ (Gen 2+) low light image intensifier tubes offer mutiple advantages over previous generations of night vision technology. It is high clarity with white imaging and green imaging.
Generation 3 (Gen 3) low light image intensifier tubes offer multiple advantages over previous generations of night vision technology. It is very high definition with It has white phosphorus tubes and green phosphorus tubes

MAIN FEATURES

1.Improved sensitivity: Gen 2+ tubes are more sensitive to low levels of light than previous predecessors, allowing for better performance in extreme low-light conditions.
2.IHigher resolution: Gen 2+ tubes typically have higher resolution than Gen 2 tubes, resulting in a sharper and clearer image.
3.Longer lifespan: The cathode material used in Gen 3 tubes is more durable and lasts longer than the material used in Gen 2 tubes, resulting in a longer service life.

1.Improved sensitivity: Gen 3 tubes are more sensitive to low levels of light than previous predecessors, allowing for better performance in extreme low-light conditions.
2.Improved reliability: Gen 3 tubes are more reliable than previous generations, with fewer breakdowns
3.Reduced noise: Gen 3 tubes have lower levels of noise than previous generations, resulting in a clearer image with less interference.
4.Longer lifespan: The cathode material used in Gen 3 tubes is more durable and lasts longer than the material used in Gen 2 tubes, resulting in a longer service life.

Application:


Specifications:

ItemGen2+ Image Intesifier Tube
Resolution51-60 lp/mm 60-64
Signal to Noise Ratio20/23
Sentivity650 μA/lm/700
Quality Factor(FOM)1000/1600
Operating Voltage2.3-3.4V|2.2-3.4V
Working Current25 mA
Brightness Gain8000-12000 cd/m²/lx
Maximun Output Brightness4-8 cd/m²
Equivalent Background Illumination0.25 μ lx
Brightness Uniformity3:1 < (Unknown) id =0 class=font0
Cathode Effective Diameter17.5 mm
PhosphorP22|P43|P45
Weight85 g
DimensionsSee the designnon-automatic gate
Small High Voltage Power SupplyNon-automatic gate (Automatic gate is optional)
Item Real Gen3 Image Intesifier Tube
Resolution60-74 lp/mm
Signal to Noise Ratio31.66
Sentivity1816 μA/lm
Quality Factor(FOM)1900
Operating Voltage2.5~3.5 V
Working Current28 mA
Brightness Gain12045 (@x 10-5 Ix) cd/m²/lx
Maximun Output Brightness7.4 cd/m²
Equivalent Background Illumination1.4*10-7 μ lx
Brightness Uniformity1.23 (@2856K) < (Unknown) id =0 class=font0>
Cathode Effective Diameter17.8 mm
PhosphorP43/P45
Weight72.8 g
Dimensions See the design
Small High Voltage Power Supply Automatic Gate

For more information, please click the button below to download a PDF of the product.
