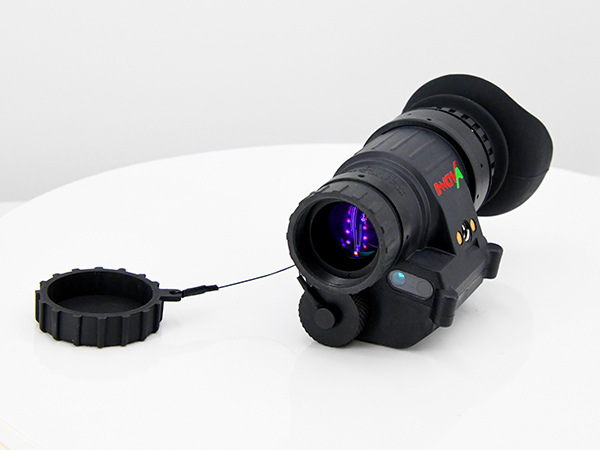

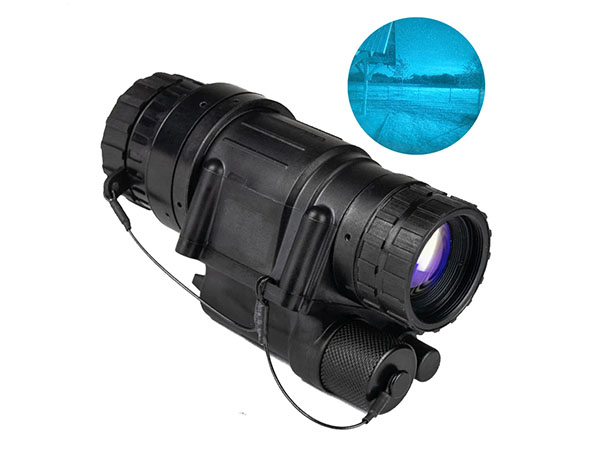

Product Description

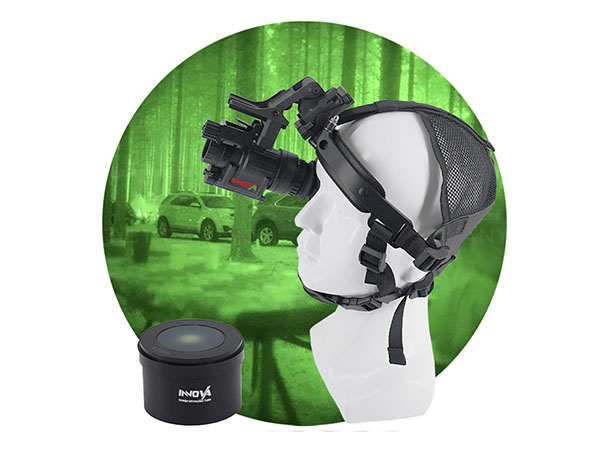

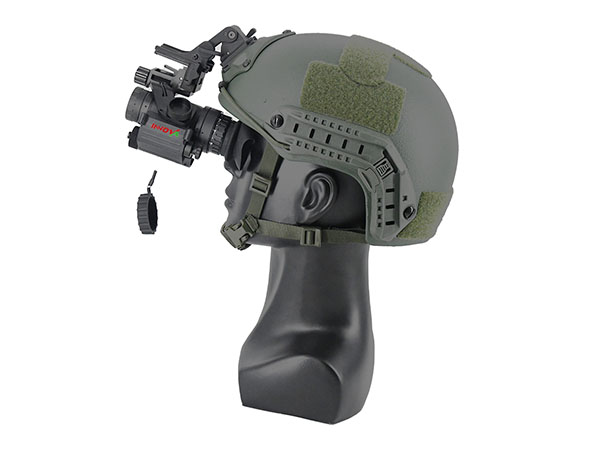

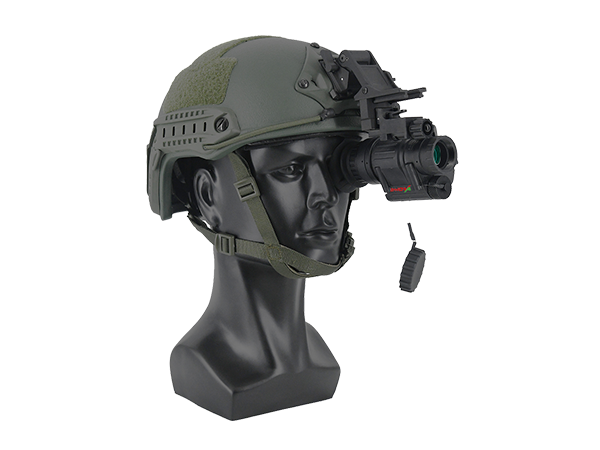

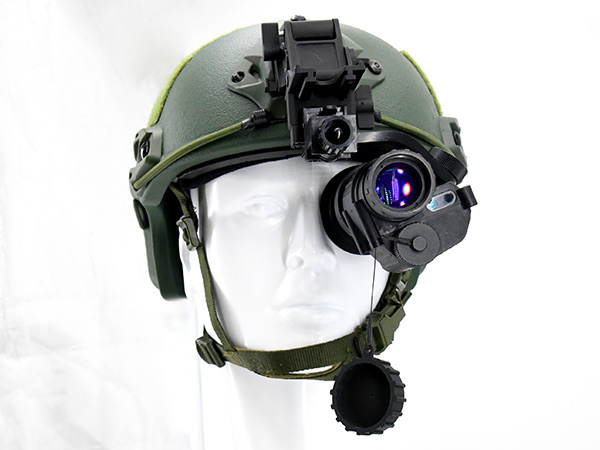

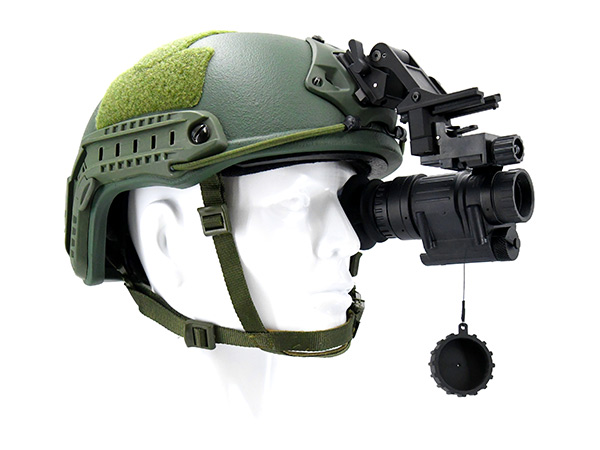

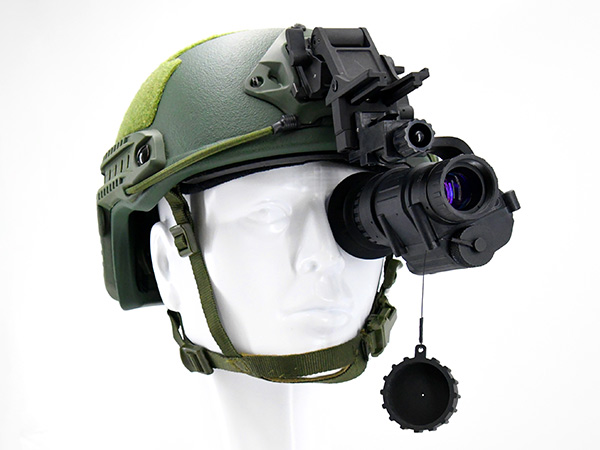

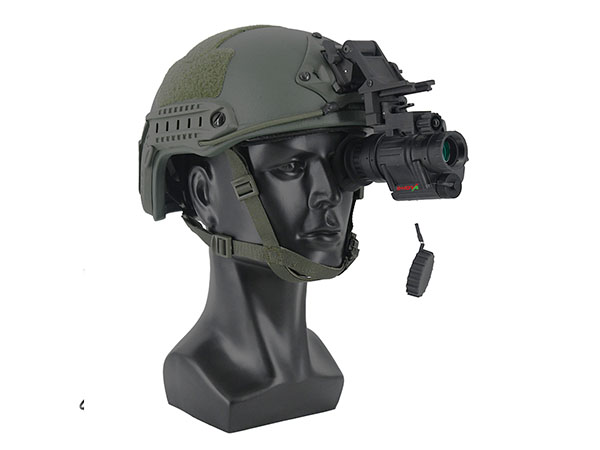

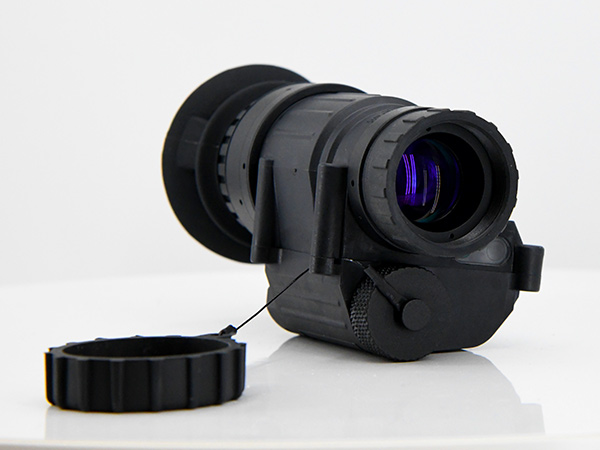

VA-PVS-14 night vision monocular series is based on the latest photoelectric technology research and development of new products,the instrument adopts the high-performance generation Gen II/III image intensifier which has the characteristics of excellent performance, small size, light weight, clear imaging, and simple operation. operation, cost-effective, and by changing the objective lens (or attaching a multiplier). It can change magnification etc. The product can be hand-held or connected to a helmet, and can also be used alone. The night vision device is equipped with infrared auxiliary light source and automatic anti-glare protection system. The product has strong practicability and can be used for observation and hunting at night without lighting.
Main Features
1- All-solid-state non-contact automatic pose recognition .
2- Fast,sensitive and anti strong light .
3- Work for 40h and turn on the infrared for up to 20h .
4- Light and convenient,weighs only 240g .
5-Multilaver composite broadband super-vacuum ion-permeable membrane .
Air Patrol
Search & Rescue
Assisted Driving
Security Monitoring
Hunting
Home Security
Observe Animals
Predictive Maintenance
Night Hike
| lmage Intensifiter | Russian Gen 3 |
| FOV | 40°/50° |
| Type | Monocular |
| Effective Visual Distance | 250 - 600 m |
| Field Of View | 50'+2 |
| Dioptre Adjustment Range | +5 / -5 diop |
| Lens Specification | F1.2 . 25mm diopters |
| Objective Adjustment Range (m) | 0.25 -- 8mm diopters |
| Automatic Anti-Strong Light | High-sensitive,ultra-fast and broadband detection |
| Flip Detection | Full-solid-state con tactless automatic pose recognition |
| Dimensions(mm) | 115 x 69 x 54 |
| Weight | 240 g |
| Power Supply Voltage | 2.6-4.2V |
| Battery Type | One lithium battery |
| Continuous Working Hours | 40h (R OFF) 20 h (R ON) |
| Operating Temperature Range | -38/50°C |
| Relative Humidity | 5% - 98% |
| Dust And Waterproof Grade | IP65/IP67 ( Optional ) |
| SWarranty | Year |
| IR Illuminator | Year |
| Operation temp. | -20℃～50℃ （Can customize -40℃～55℃） |
| IR Illuminator | 40℃～60℃ |
| Protecion level | IP65（IP67 Optional |
For more information, please click the button below to download a PDF of the product.
Downloads
Night Vision Monocular PVS-14
