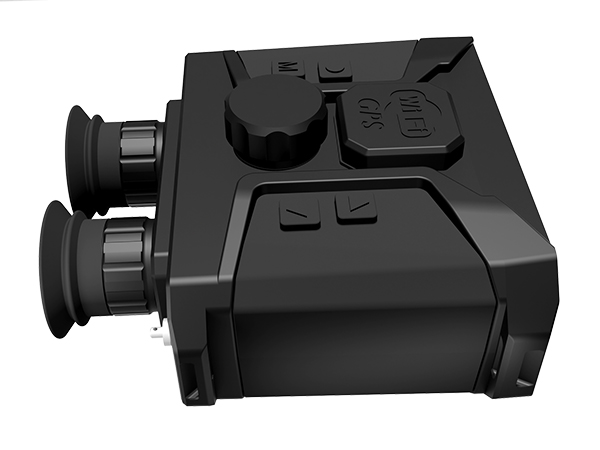

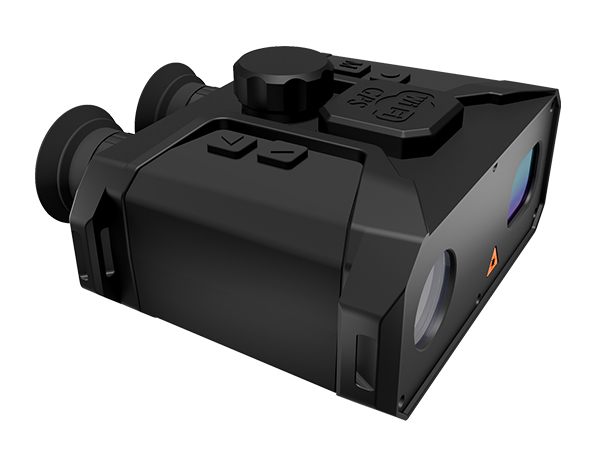

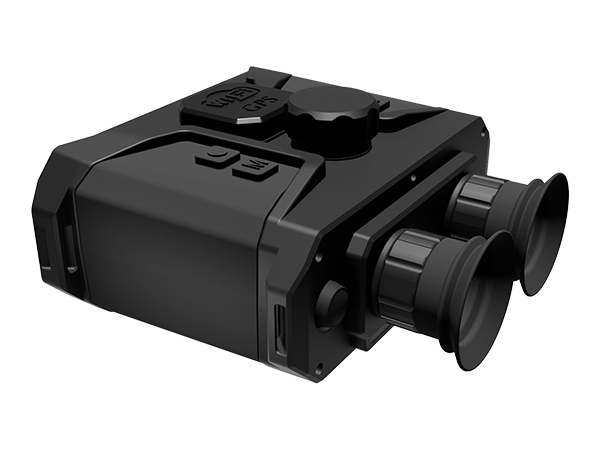

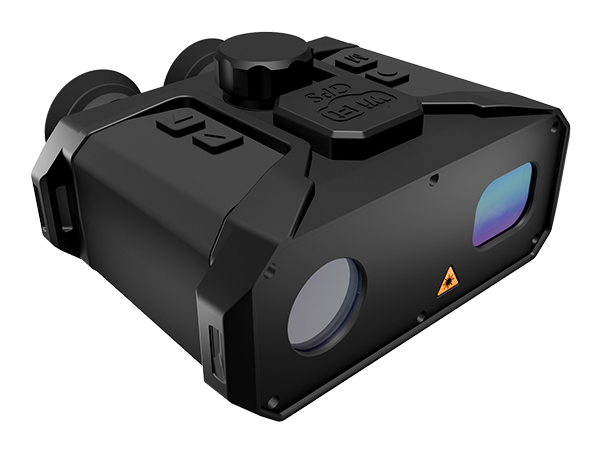

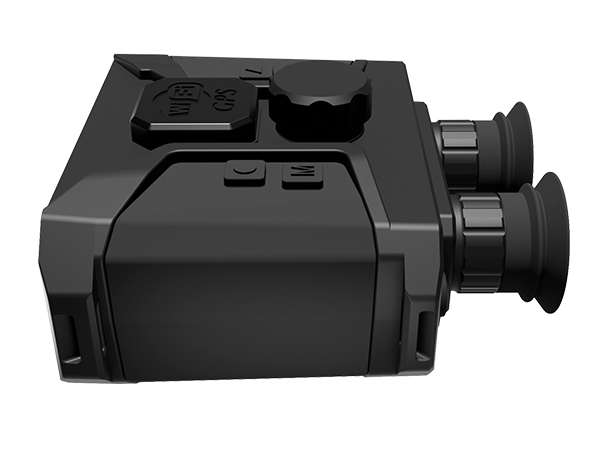

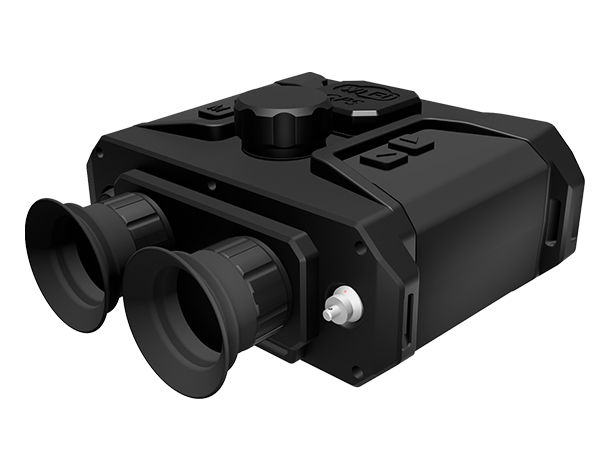

VA-S01-L3B75 is a binocular rangefinder with small size, light weight, easy to carry and simple operation. The precision laser distance measurement can reach 10 kilometers, accurate to ±1m, and the efficiency is more than 98%. It has wireless WIFI, USB interface, photo recording, SD memory card and other functions. The protection level reaches IP66, dustproof and waterproof, suitable for various complex environments.
Search & Rescue
Cave Exploration
Hunting
Predictive Maintenance
Home Security
Assisted Driving
Air Patrol
Outdoor Camping
Security Monitoring
| CMOS System | |
| Sensor Type | HD CMOS |
| Resolution | 1920×1080 |
| CMOS Size | ½ inch |
| Unit Cell Size | 3.75μm |
| Lens | f=75mm(Fixed) |
| Frame Rate | 60Hz |
| FOV | 4.9°×3.7° |
| E-Zoom | 1~16x |
| Laser Range Finder | |
| Wavelength | 905nm/1535nm（Eye Safe，Class 1） |
| Range Distance | 3km/5km/8km/10km（opt.） |
| Accuracy | ±1m |
| Efficiency | ＞98% |
| Power | |
| Power Supply | Single 26650 Rechargeable Li-ion Battery 3.7V ＠5000mAH |
| Operating Voltage Range | DC：2.8V～4.2V |
| Operating Power Consumption | ＜2.5W |
| Operating Hours | Continuous Operating Hours: ≥6h |
| Environment | |
| Protection Level | IP66 |
| Housing Material | 6061 |
| Vibration | Shipping |
| Bump | Shipping |
| Storage Temperature | -40°C～+65°C |
| Operating Temperature | -30°C～+60°C |
| Weight | 1.4kg(Batteries included） |
| Size（mm） | L181×W227×H96 |
| Others | |
| WIFI | opt. |
| Digital Magnetic Compass | opt. |
| GPS | opt. |
