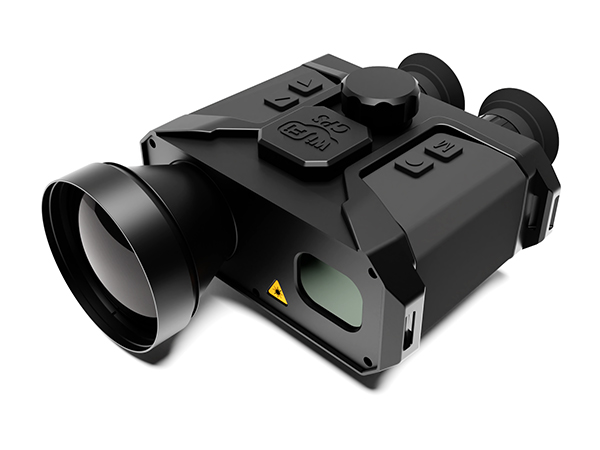

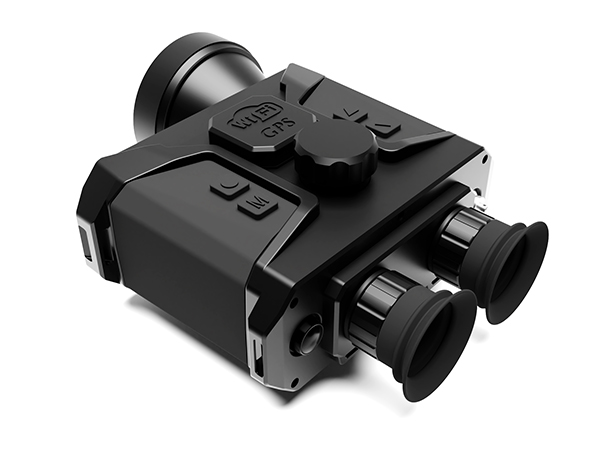

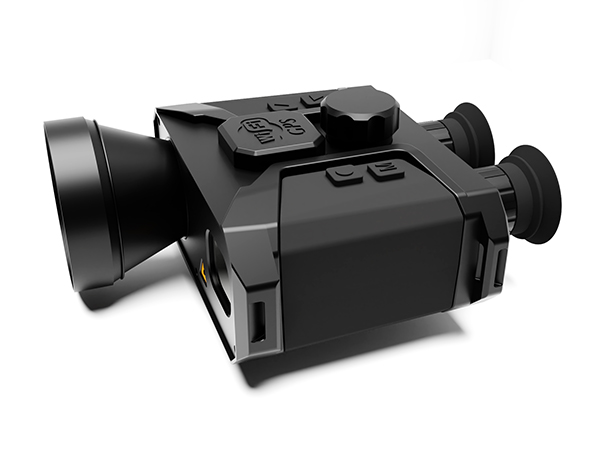

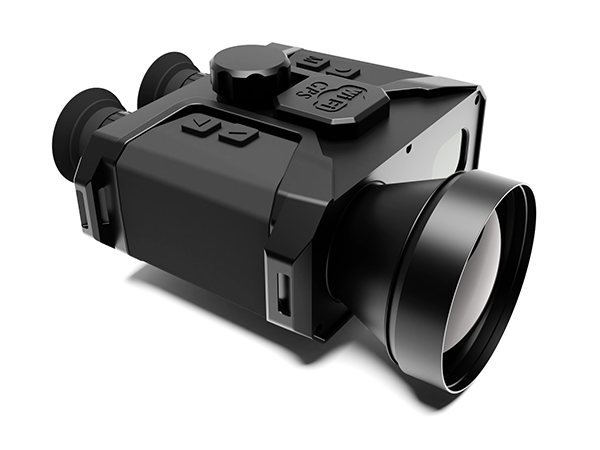

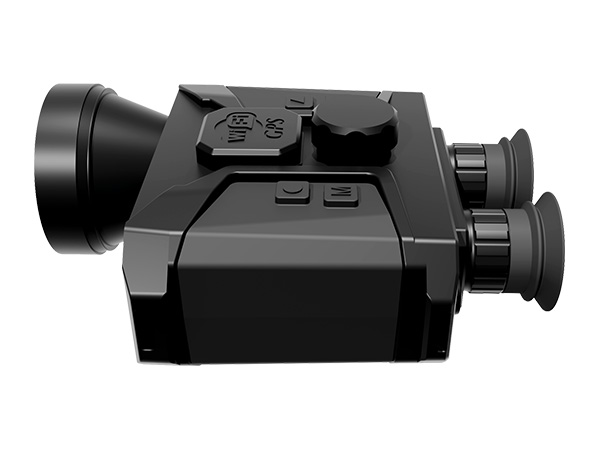

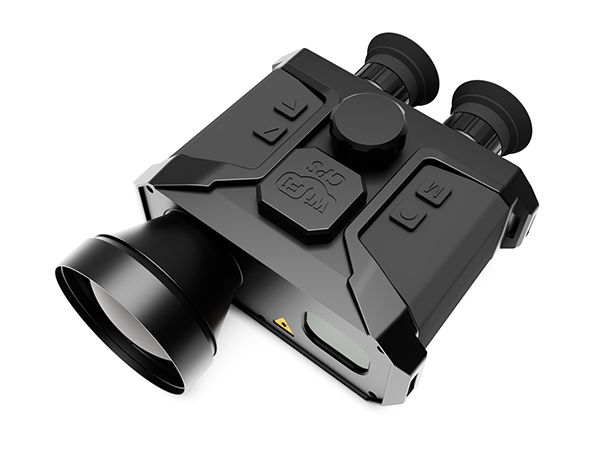

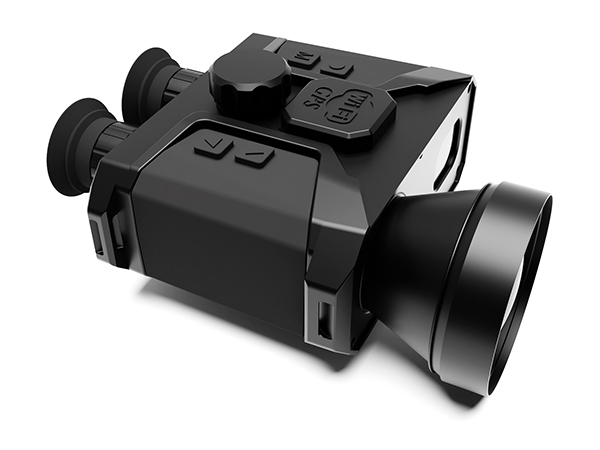

VA-S01-T685L3 binocular infrared night vision device with laser rangefinder can be used for handheld or fixed observation, night reconnaissance, evidence collection and target search, and has the function of taking photos/video evidence collection, and can record video images for a long time. And it can also be equipped with WIFE, electronic compass, GPS and other functions. This device is not only small in size, easy to carry and use, but also has good environmental adaptability.
VA-S01-T685L3 binocular infrared night vision device is suitable for single-person frontier observation and fixed observation station observation, and can observe, take photos and record videos of targets day and night. In addition, it has fast autofocus function, multiple electronic zoom, image filtering, and magnification without losing its original color. The device has IP66 protection level, dustproof and waterproof, suitable for various environments. The precise laser ranging range can be up to 10 kilometers.
Security Monitoring
Military Action
Night Hike
Search & Rescue
Outdoor Camping
Observe Animals
Predictive Maintenance
Air Patrol
Cave Exploration
| Thermal System | |
| Detector Type | UnCooled VOx FPA |
| Resolution | 640*512@12μm |
| Spectral Range | 8～14μm |
| Frame Rate | 50Hz |
| NETD | ＜50mK@300k F#1.0 |
| Display | 1024×768 0.39 |
| Boot Time | ＜6s |
| Noise Reduction | Digital Filtering |
| Image Adjustments | Electric/Manual Adjustment |
| E-Zoom | 1X/2X/4X |
| Focal Length | f= 85mm F1.0 |
| FOV | 5.2°×4.1° |
| Focusing Method | Manual |
| Photo Function | JPEG |
| Video Function | MPEG4 |
| Storage | 32GB；USB-A 2.0 |
| Detection Human（1.7m×0.5m） | 3.0km |
| Recognition Human（1.7m×0.5m） | 1.0km |
| Detection Vehicle（2.3m×2.3m） | 10km |
| Recognition Vehicle（2.3m×2.3m） | 3.0km |
| Laser Range Finder | |
| Wavelength | 905nm/1535nm（Eye Safe，Class 1） |
| Range Distance | 3km/5km/8km/10km（opt.） |
| Accuracy | ±1m |
| Efficiency | ＞98% |
| Power | |
| Power Supply | |
| Operating Voltage Range | DC：2.8V～4.2V |
| Operating Power Consumption | ＜2.5W |
| Operating Hours | Continuous Operating Hours: ≥6h |
| Environment | |
| Protection Level | IP66 |
| Housing Material | 6061 |
| Vibration | Shipping |
| Bump | Shipping |
| Storage Temperature | -40°C～+65°C |
| Operating Temperature | -30°C～+60°C |
| Weight | 1.4kg(Batteries included） |
| Size（mm） | L181×W239×H99 |
| Others | |
| WIFI | opt |
| Digital Magnetic Compass | opt |
| GPS | opt |
Binocular infrared night vision device with laser rangefinder
