VA-6100 uses a telephoto lens with mid-to-long range performance. It can be used for handheld or fixed observation, night reconnaissance, evidence collection and target search. It also has photo/video evidence collection functions and can record video images for a long time. The product uses a single built-in rechargeable battery, with a continuous working time of more than 6 hours. The products are designed and manufactured in accordance with military standards and can be used in harsh battlefield environments.
Home Security
Air Patrol
Predictive Maintenance
Outdoor Camping
Observe Animals
Hunting
Military Action
Search & Rescue
Security Monitoring
| Product Model | VA-6100 |
| Detector type | Uncooled focal plane |
| Detector specifications | 640*512@12μm |
| Working band | 8～14μm |
| Frame rate | 50Hz |
| Sensitivity | ＜50mK@300k F#1.0 |
| Screen | 1024×768 0.39 |
| Boot time | <6 seconds |
| Image noise reduction | Digital filtering |
| Gain adjustment | Automatic/manual adjustment |
| Electronic zoom | 1X/2X/4X |
| lens focal length | f= 100mm F1.0 |
| field of view | 4.4°×3.5° |
| Focusing method | Manual |
| camera function | Photos in JPEG format |
| Video recording function | MPEG4 format video |
| Storage and output | 32GB|USB-A 2.0 |
| Working voltage range | DC: 2.8V～4.2V |
| Normal operating power consumption | ＜2.5W |
| operating hours | ≥6.5 hours |
| Product protection level | IP66 |
| Shell material | 6061 aluminum |
| Storage temperature | -40°C～+65°C |
| Operating temperature | -30°C～+60°C |
| Overall machine size (mm) | 277(L)×195(W)×76(H) |
| Impact resistance | 30g/11ms half sine wave |
| Anti-vibration | Sweep frequency 5-200-5Hz,|The acceleration is 2.5g |

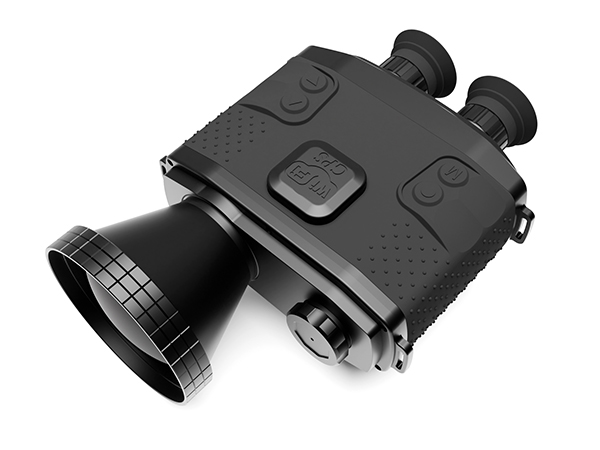

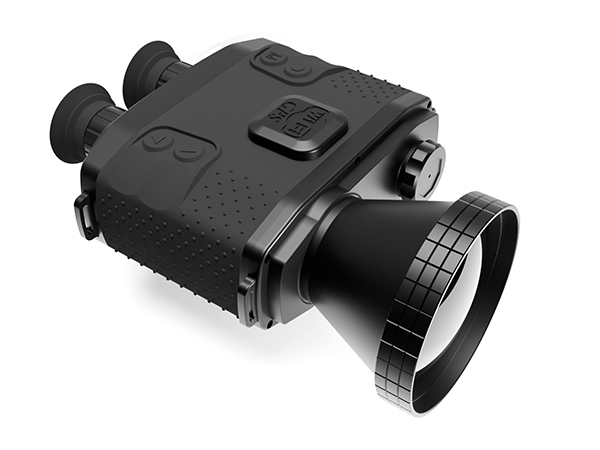

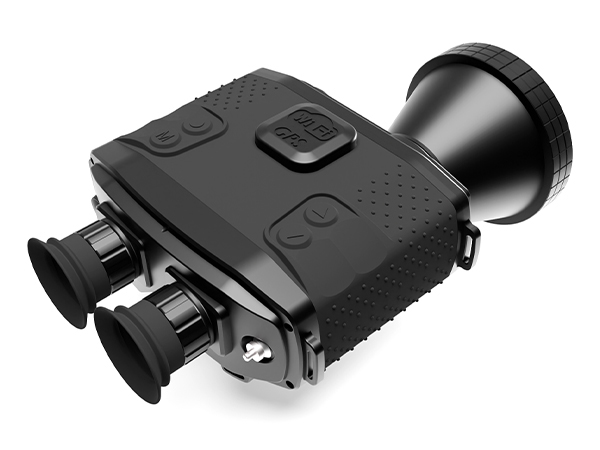

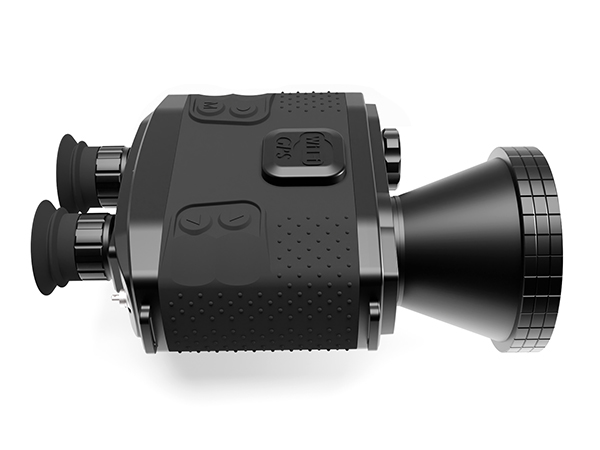

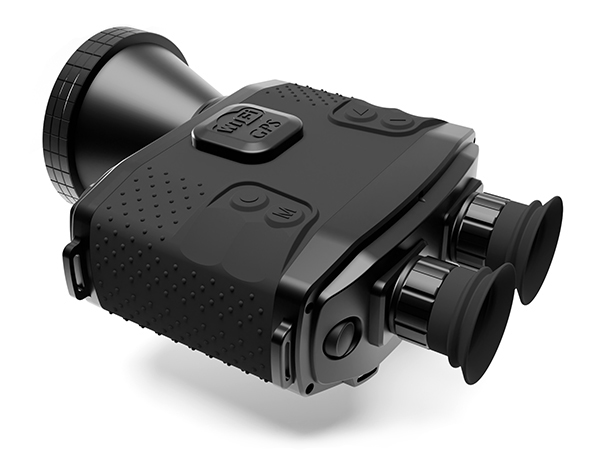

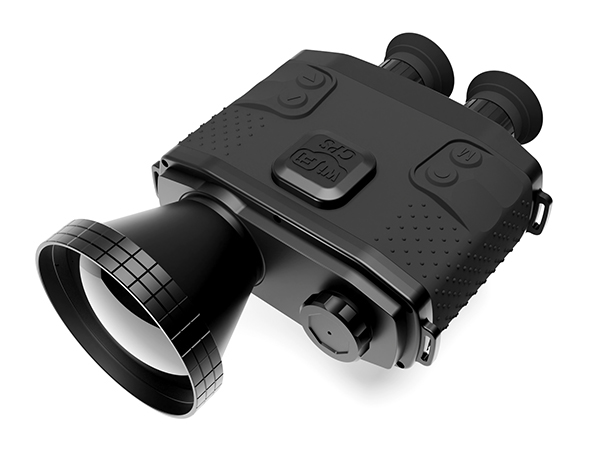

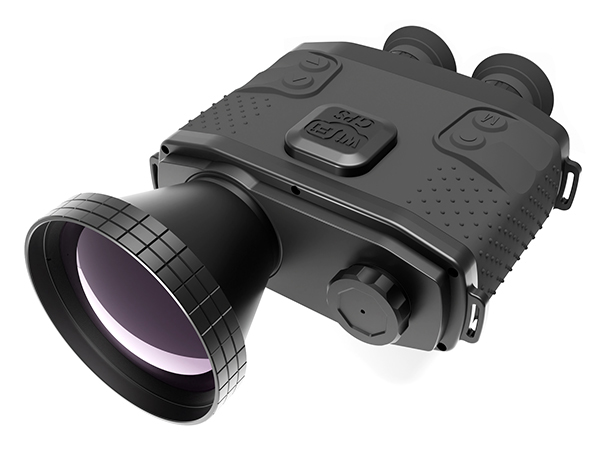

Uncooled Thermal Detector VA-6100
