Application areas: industrial and agricultural testing, product sorting, spectral analysis, environmental monitoring, etc.
Product features: multi-level gain, high line frequency, low temperature drift, high detection sensitivity, and work at room temperature.
Military Action
Outdoor Camping
Cave Exploration
Night Hike
Hunting
Predictive Maintenance
Air Patrol
Assisted Driving
Observe Animals
| Parameters | 1024×1/12.5μm |
| Integral mode | ITR or IWR |
| Spectral Response Range | 0.9μm-1.7μm |
| Blind number | ≤5, no consecutive blind elements |
| Response rate non-uniformity | ≤4% |
| The highest line frequency of the whole frame | ≥35KHz@2 channels |
| Peak quantum efficiency | ≥75%@1550nm |
| Function | Internal CDS, direction adjustment, 16-level gain |
| Package form | Metal/ceramic package |

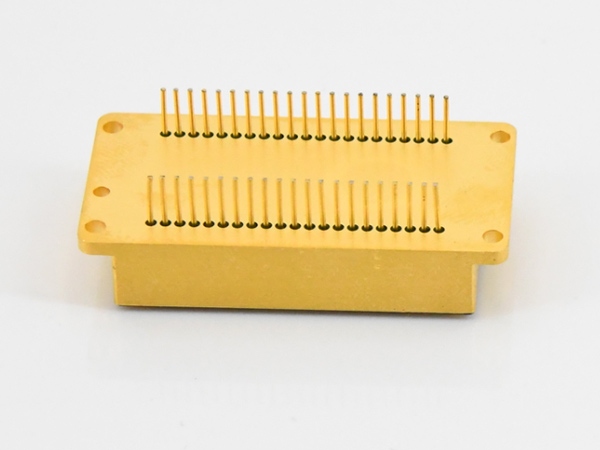

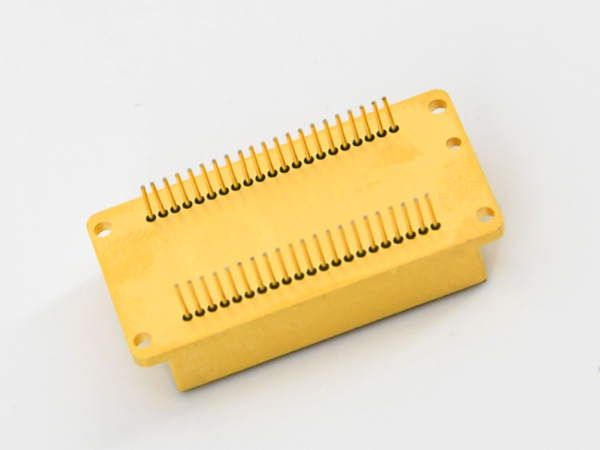

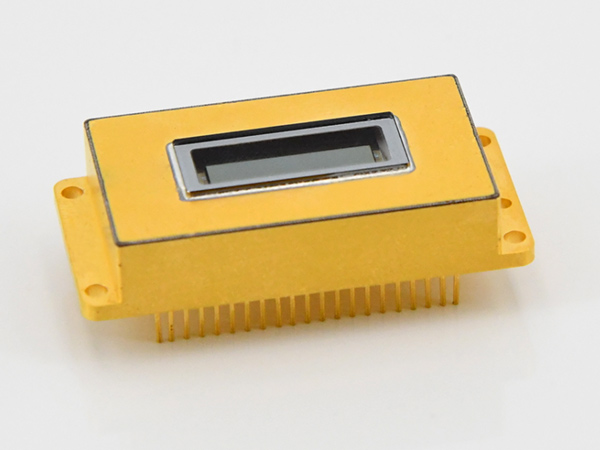

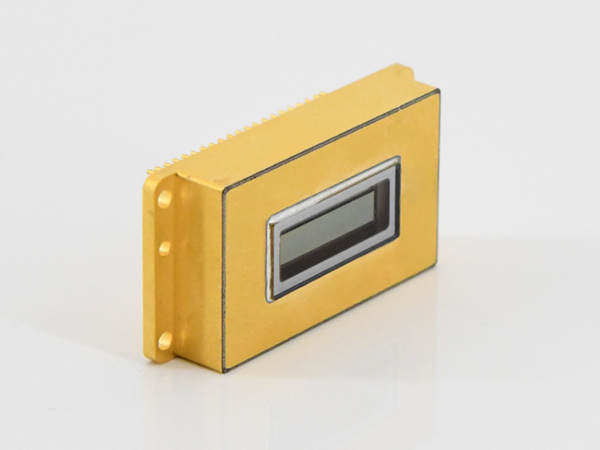

1024×1/12.5μm InGaAs Short Wave Infrared LineScan Detector
