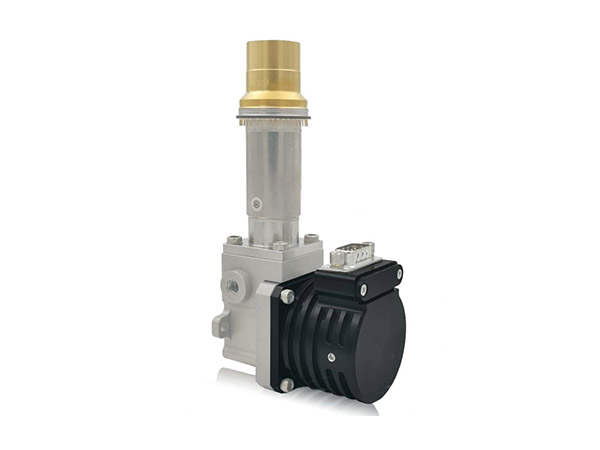

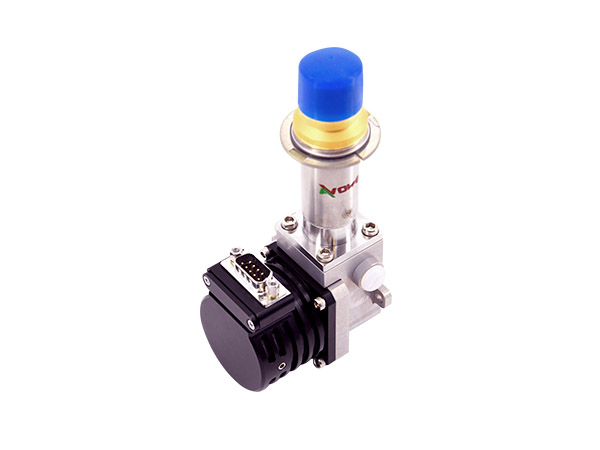

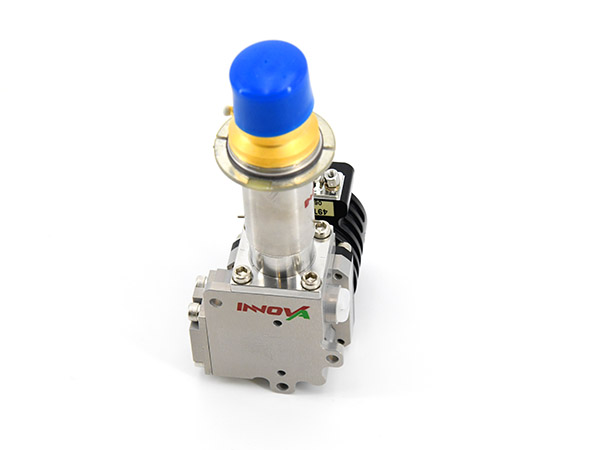

640×512 MWIR FPA Detector Module

Overview

The 640×512 MWIR FPA detector module (hereinafter referred to as the "detector module") has the function of converting infrared radiation signals in 3~5u m wave band into electrical signals. All mechanical, optical and electrical interfaces are of universality, and can be used in various military and civilian thermal imaging systems such as various night vision equipment, panoramic searching, thermal image sighting, forward looking warning, weapon guidance, air defense monitoring, infrared recognition, infrared diagnostic testing and temperature measurement.

Main Technical Characteristics

a) Array scale: 640×512 (pixel)
b) Pitch: 15μm
c) Power Supply: 3.3V
d) Snap-shot mode, integration then readout (ITR), integration while readout (IWR)
e) Input polarity: N on P
f) Charge capacity: 6.8 Me- (ITR), 5.5 Me-(IWR)
g) Output channels: 4
h) Multi-mode and windowing mode readout
i) Direct injection, anti-bloom function
j) Readout rate: Max 10MHz
k) Full frame rate up to 120Hz (640×512)
l) Dynamic range: ≥80dB
m) Power consumption: ≤50mW (without the cooler)

Product Configuration, Structure and Operating Principle

The 640×512 MWIR FPA detector module mainly consists of the following:
a) 640×512 HgCdTe FPA detector chip
b) 640×512 CMOS ROIC
c) C308F integrated Stirling cooler
d) Micro dewar
e) Infrared window

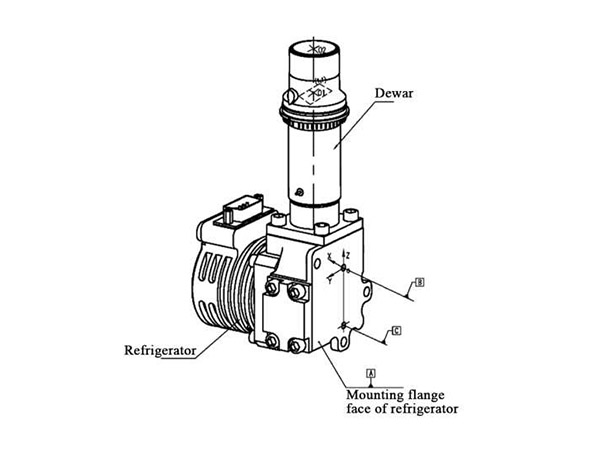

The 640×512 MWIR FPA detector module consists of HgCdTe film material, ROIC, detector chip, micro dewar and C308F integrated Stirling cooler, as shown in Fig.
