Equipment Overview
60mm mortar universal sight is suitable for 60mm mortar, with 360° rotation adjustment in azimuth and 45° ~ 85° adjustment in pitch direction, to meet the operational requirements of 60mm mortar.
Structure and working principle

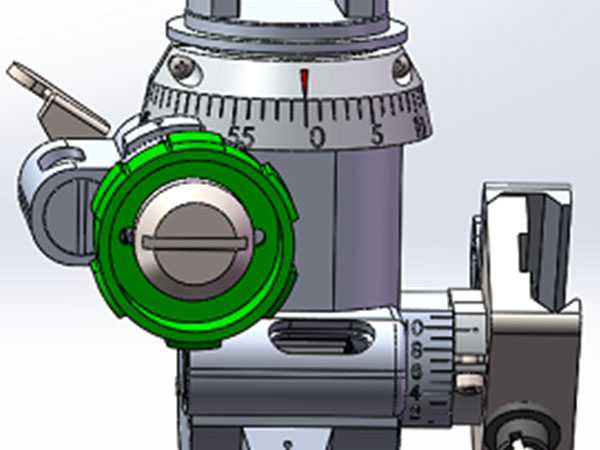

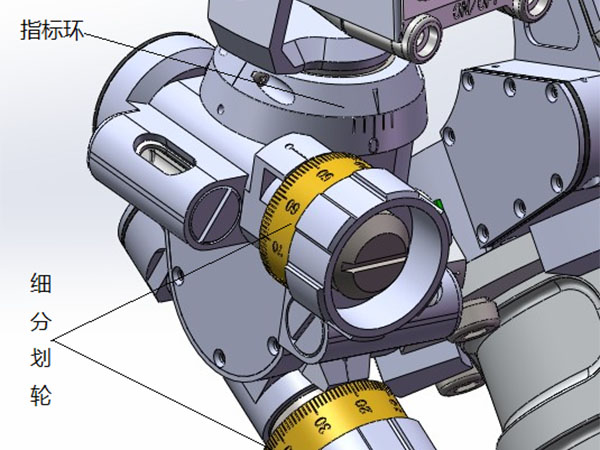

The 60mm mortar general sight is composed of white light mirror, mechanical Angle measuring mechanism and locking mechanism.Working principle: The white light sight is to focus the target image on the divider board after the white light lens and the Bihan prism are turned, and the target image and the divider image are collimated into parallel rays through the eyepiece to observe and aim through the human eye; The operator can adjust the pitch and azimuth mechanism according to the target distance to achieve fast and accurate aiming.
Military Action
Night Hike
Search & Rescue
Security Monitoring
Assisted Driving
Hunting
Predictive Maintenance
Home Security
Observe Animals
| Model | 408 |
| Magnification | 2.5× |
| Field of view | 9° |
| Exit pupil diameter | 4mm |
| Exit pupil distance | 26mm |
| Resolution | ≤19 |
| Direction correction range | 0° ~ 360° |
| Direction correction accuracy | ≤ 2 mil |
| High-low installation range | 45° ~ 85° |
| High-low installation precision | ≤2mi |
| Operating temperature | -40℃ ~ +50℃ |
| Storage temperature | -50℃ ~ +70℃ |
| Weight | ≤550g |
| Interface form | Picatini guide rail |

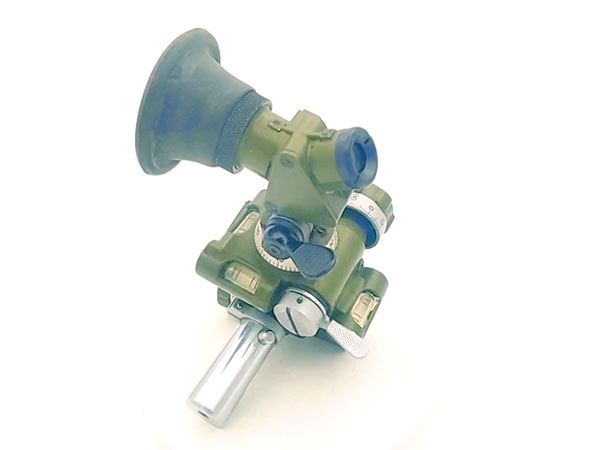

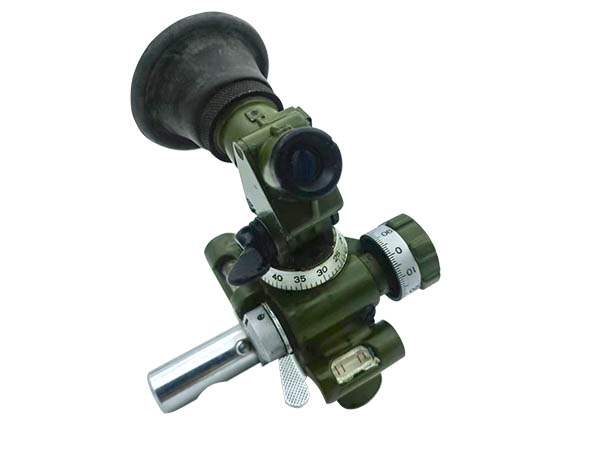

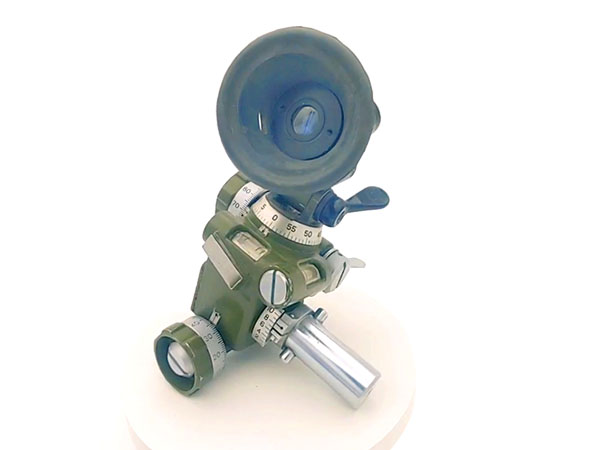

Universal scope for 60mm mortar
